Study - Simulating Queing Systems

We have seen that practical way to regard distributed systems is as queuing systems with hidden queues.

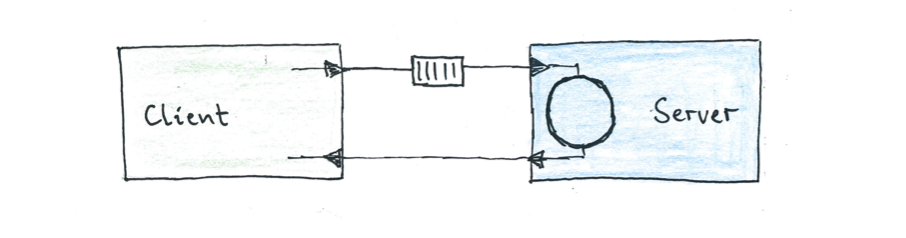

A practical queuing model, with hidden queues between Client and Server

In this note, we are going to study the behavior by simulation.

Setup

Simulate a Workload against a queuing system with N=10 workers and a constant service time of 10ms. Hence we expect this system to be able to handle 1k requests per second.

We collect the following telemetry on client and server side:

Metric Type	on Client	on Server
Requests	Requests Sent	Requests Arrived (at service worker)
Concurrency	Concurrent Requests	Active Workers
Latency	Response Time	Service Time

• We don't capture information about the queue lenght, as most of our queues are hidden in practice.
• The service time is constant 10ms, so we expect this graph to be a flat line

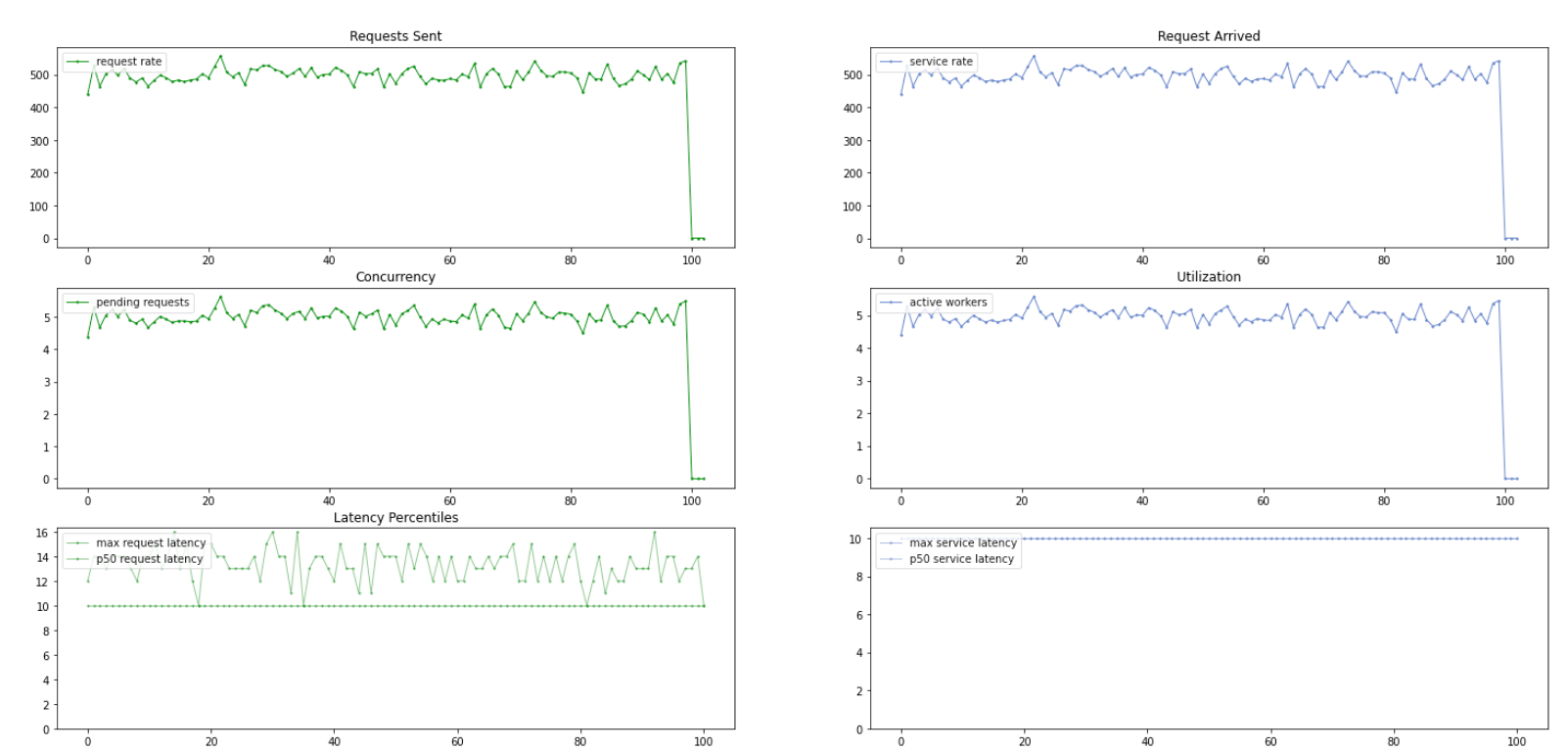

Queing System at 50% Load

• As long as we have enough free workers, all requests get immediately sergice and the concurrent requests are equal to the active workers.
• There are little queing delays the response time is nearly equal to the service time.

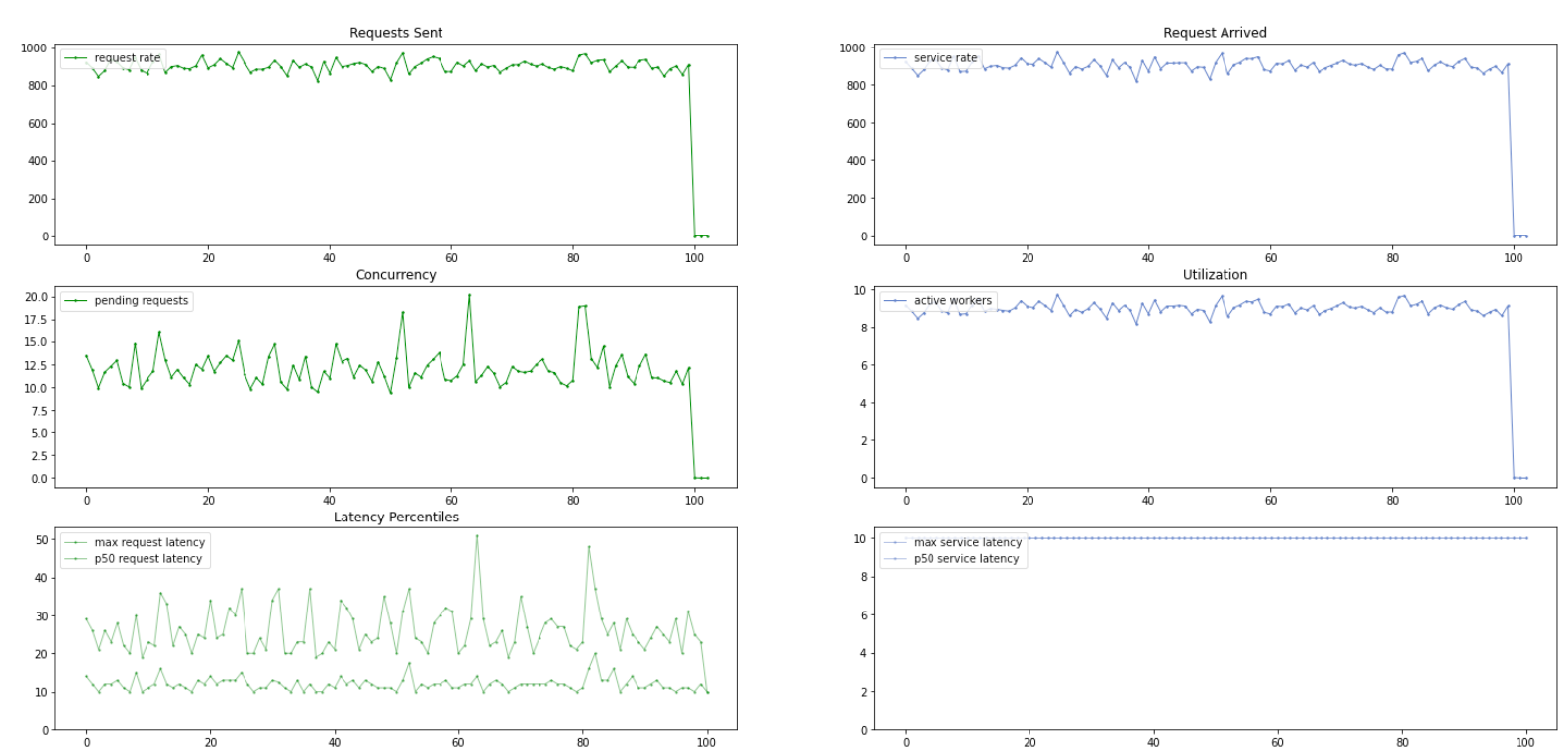

Queing System at 90% load

• There are on averagte ~12 requests pending, while just under 10 workers are utilized.
• We start seeing some queuing. Some requests have to wait double the time before getting serviced.

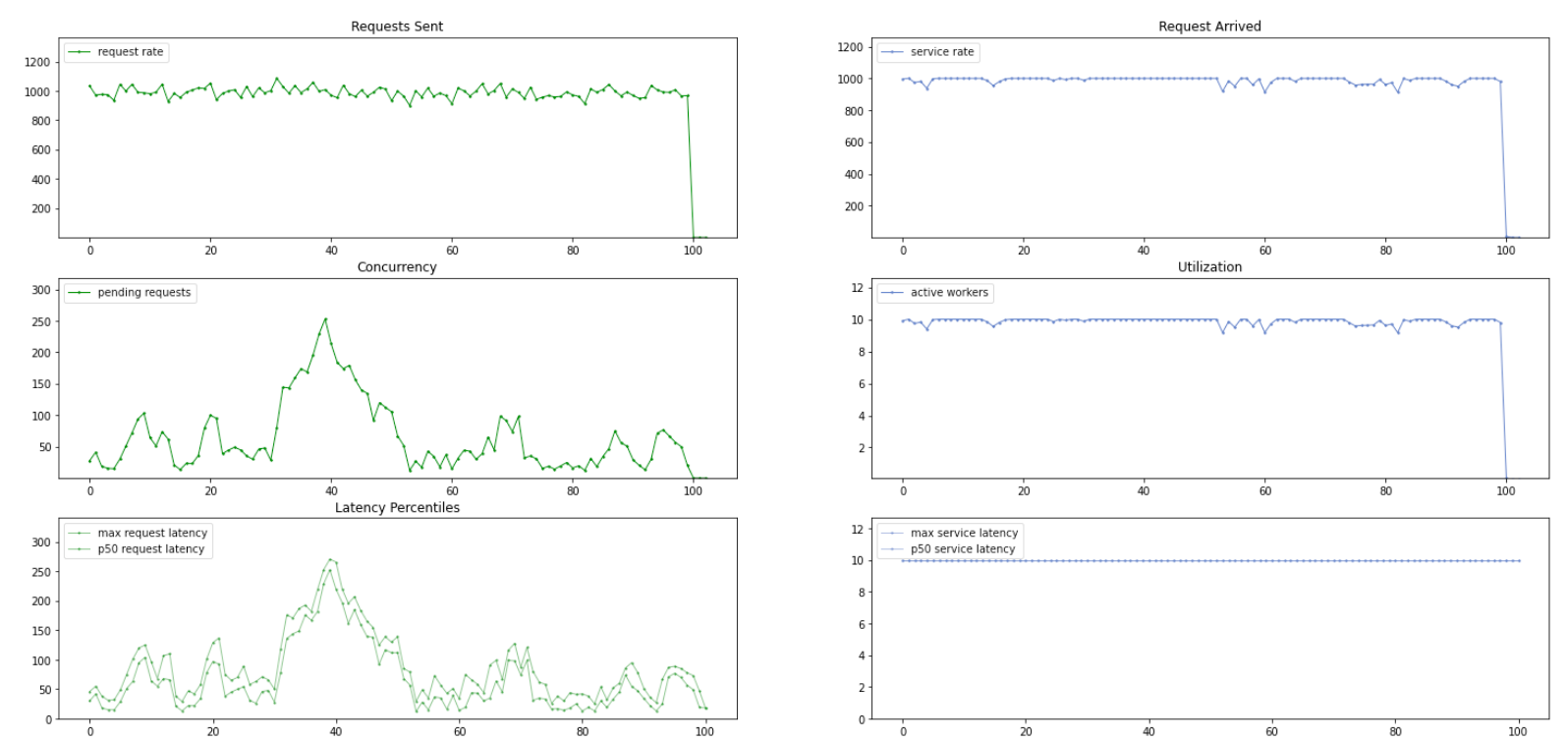

Queuing Syste at 99% load

... at 99% capacity

• At 99% capacity the response times are dominated by queing. In some cases requests were waiting for 250ms before getting serviced (in 10ms).

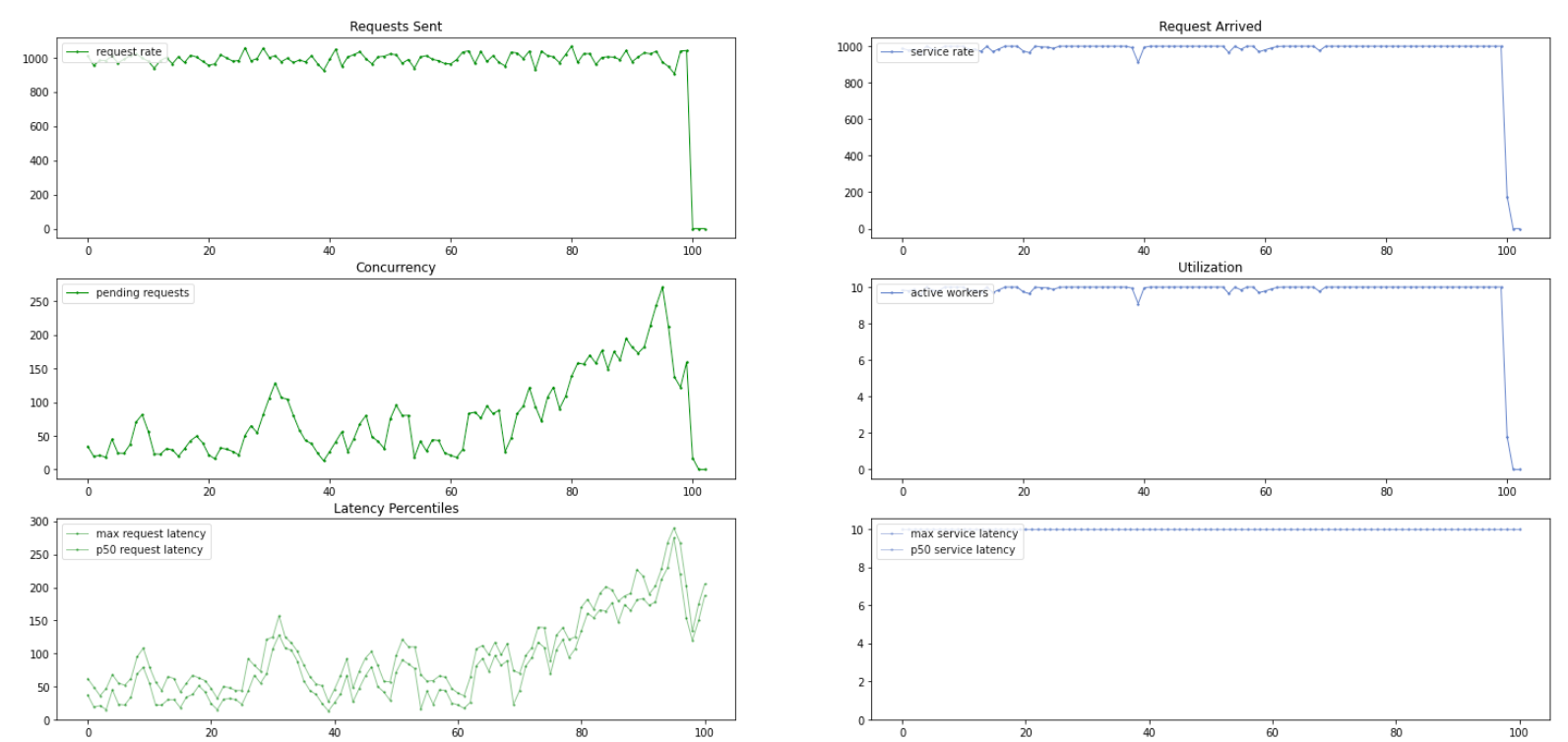

Queuing at the Edge

... at 99% capacity

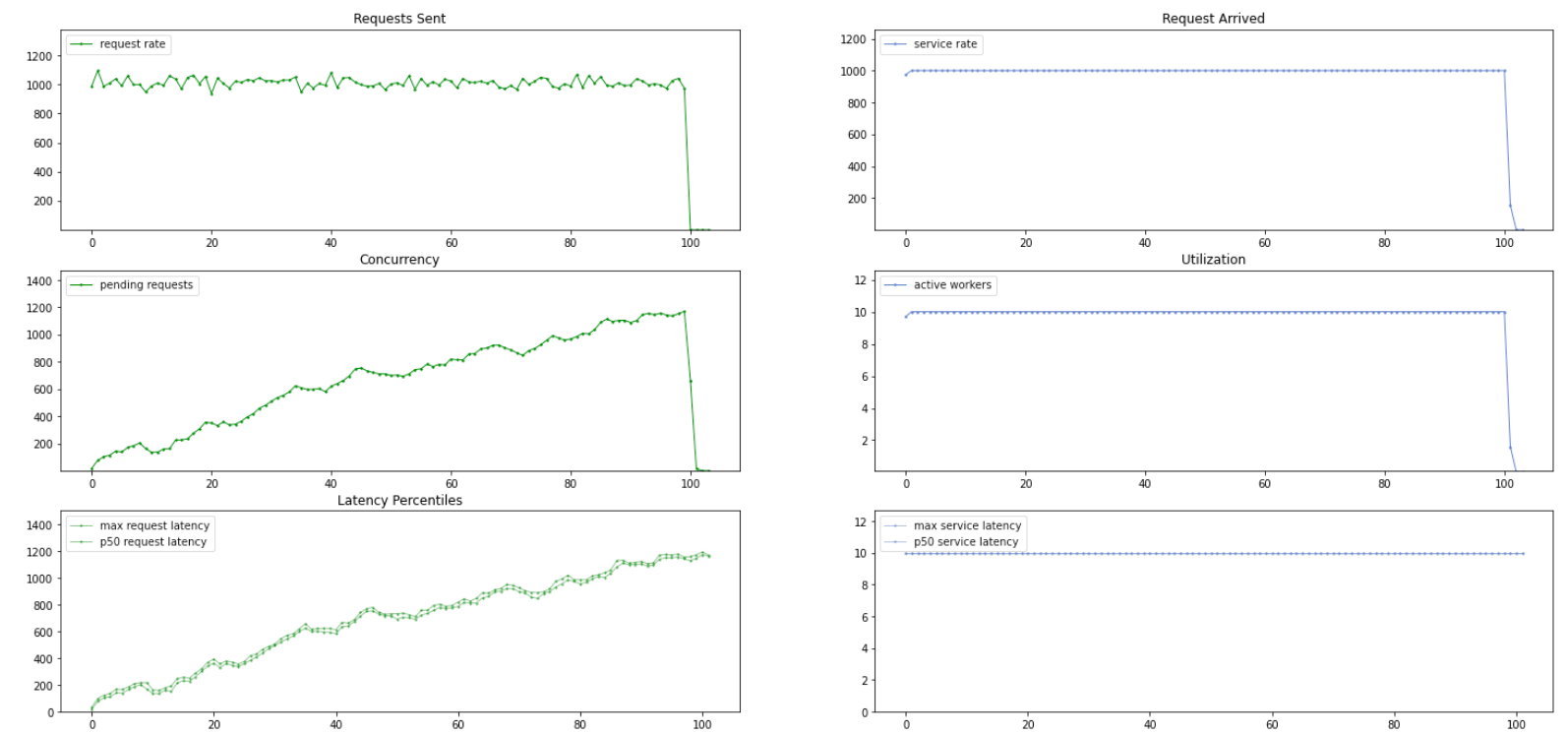

Queuing over the Edge

... at 101% capacity

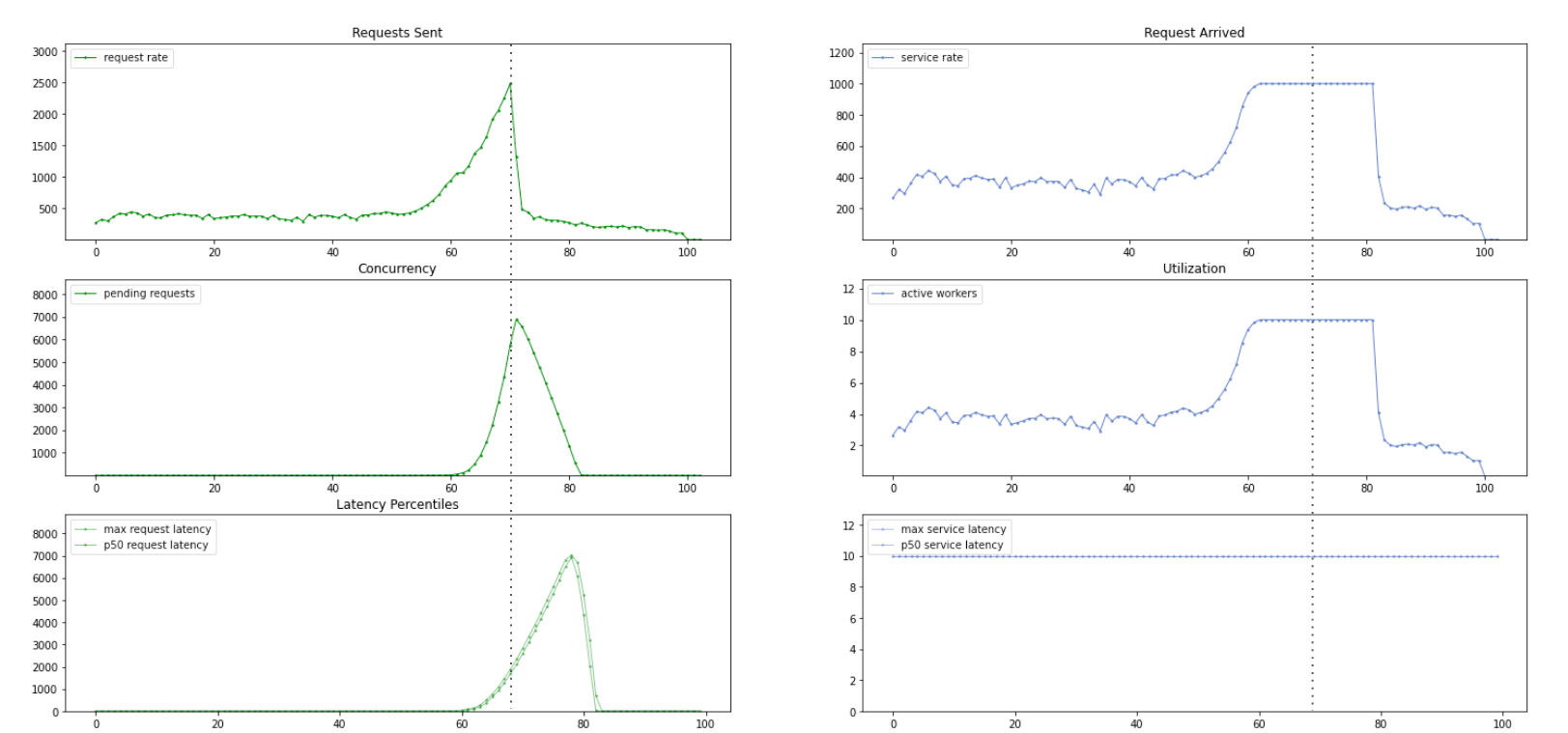

A Hockey Stick Curve

... at 101% capacity

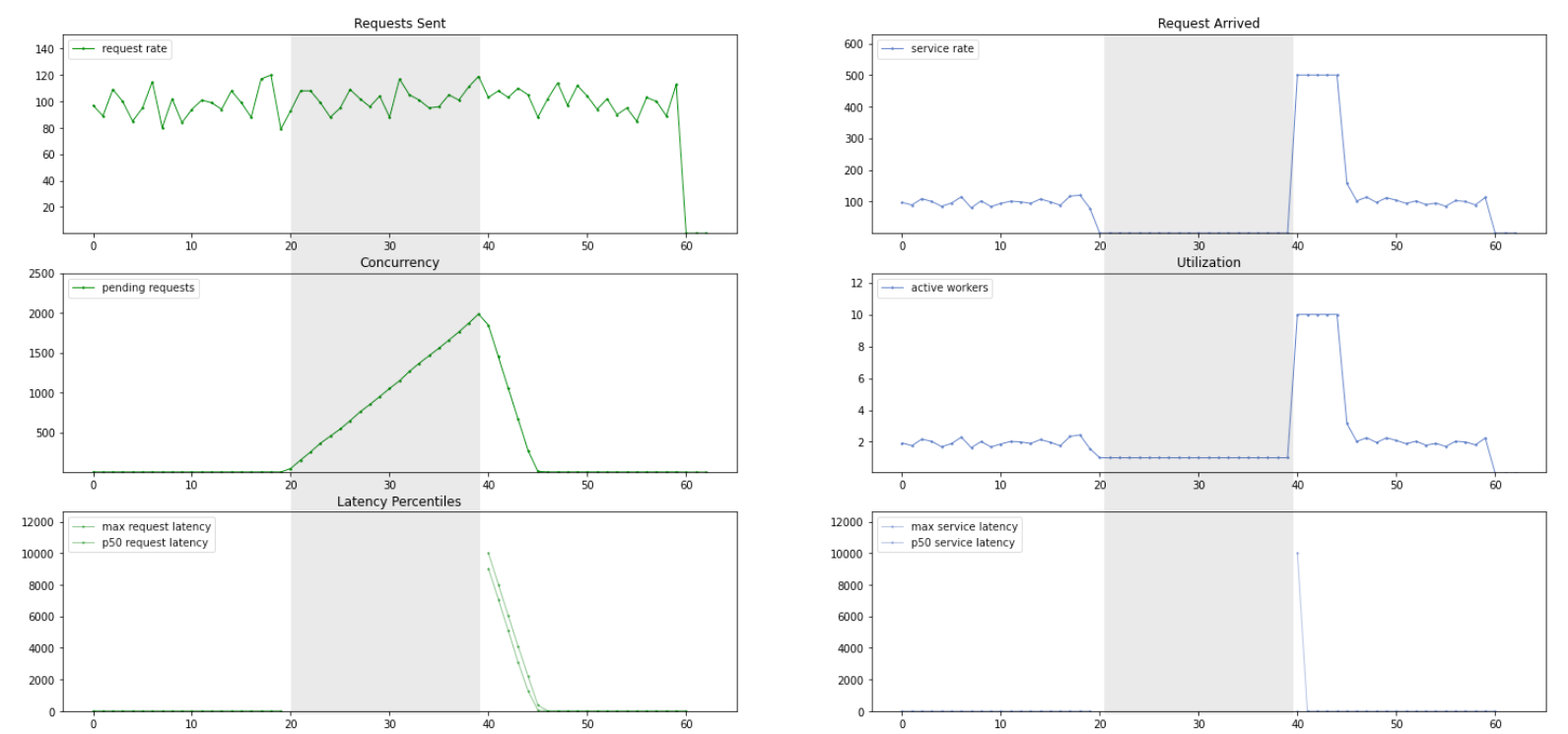

A Stalled System

... at 101% capacity
